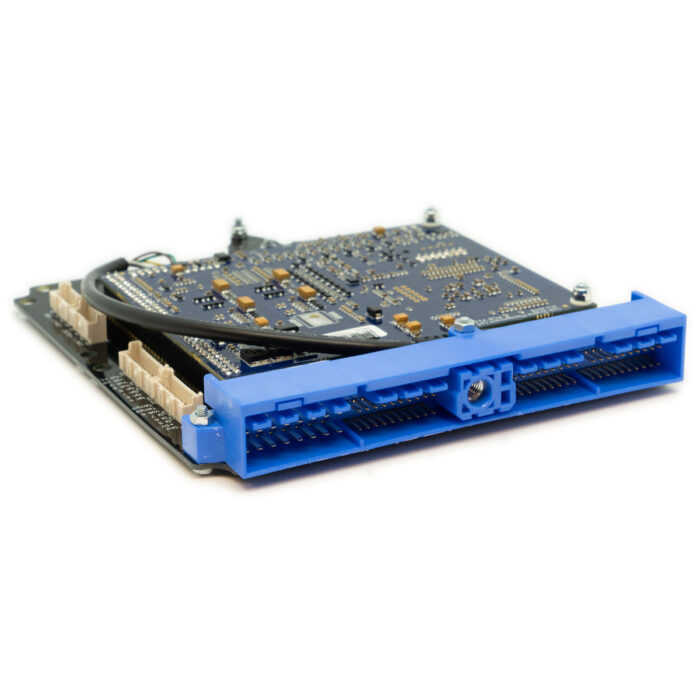

Nissan S13-14 76 pin

G4X PlugIn Key Features (where applicable):

• Up to 6D fuel and ignition mapping
• Precision closed loop cam control (four cam, independent control)
• Sequential fuel delivery
• Digital triggering, all OEM patterns
• OEM idle hardware supported
• 5D boost control with three switchable tables
• Motorsport features — antilag, launch, flat shift
• Continuous barometric correction (on board)
• CAN port
• QuickTune — automated fuel tuning
• Individual cylinder correction
• USB tuning cable included
• Stats recording into on-board memory
• Gear compensations for spark, boost and fuel
• Real time selectable dual fuel, ignition and boost maps
• Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
• Boost control referenced to gear, speed or throttle position
• 512 mega bytes data logging memory
• Staged injection
• Knock with «windowing»

I/O Expansion Options:
The following expansion connector inputs/outputs are provided:
Expansion Connector 1
Gnd                Sensor Ground Only
+5V Out        Low Current +5V Supply
DI 5                Digital Input
DI 6                Digital Input
DI 7                Digital Input
An Volt 6        Analog 0-5V input
An Temp 4        Temperature sensor input
An Temp 3        Temperature sensor input

Expansion connector 2
Ign 5                Ignition 5 Auxiliary Output
Ign 6                Ignition 6 Auxiliary Output
Ign 7                Ignition 7 Auxiliary Output
Ign 8                Ignition 8 Auxiliary Output
Volt 8                Analog 0-5V input
Volt 9                Analog 0-5V input
Volt 10                Analog 0-5V input
Volt 11                Analog 0-5V input

Download Manual

Click here to download the full Specifications PDF.
