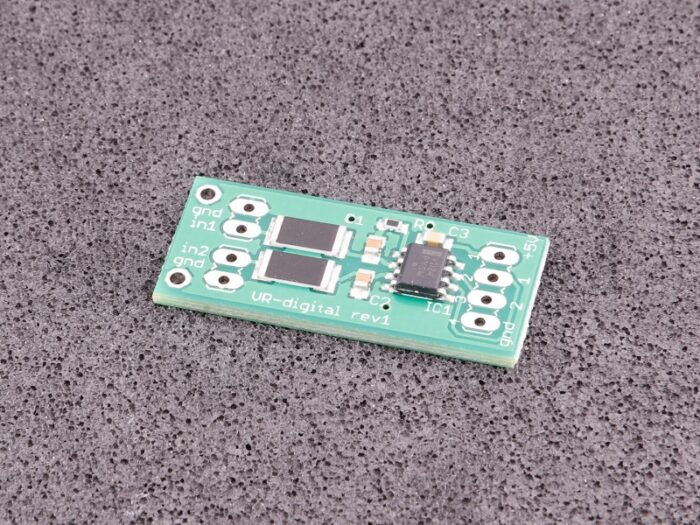

VR to hall sensor converter (VR2DIN) board 2-channel DIY

Simple dual channel VR to hall sensor converter module board.

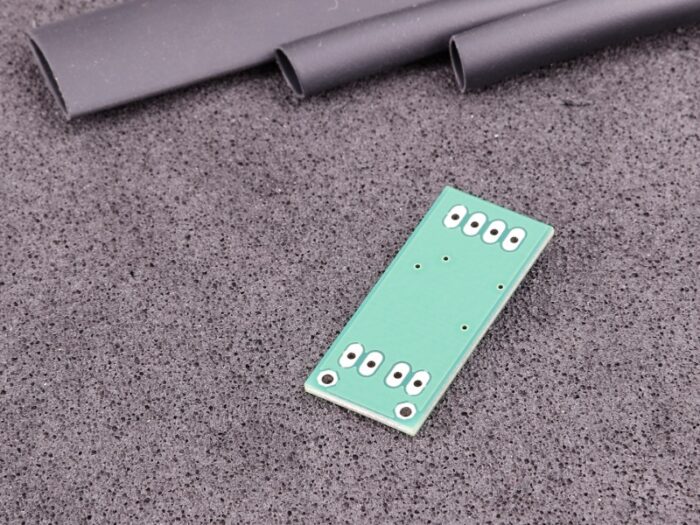

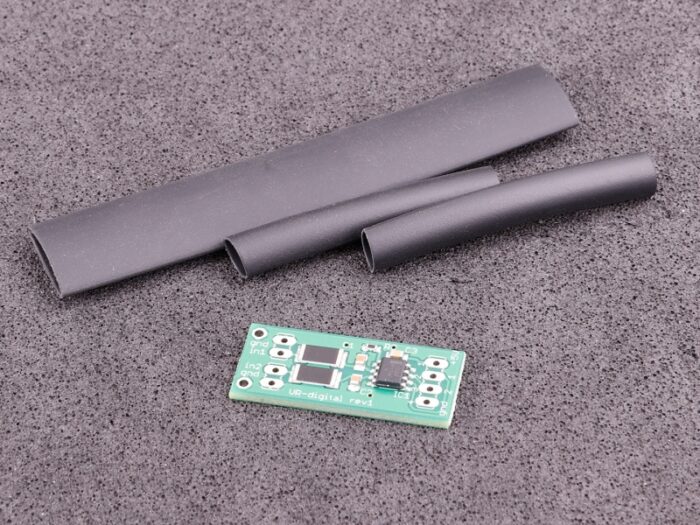

Board to be soldered and wrapped in heat-shrink tube.
+5V power supply.br /> The VR to Hall Sensor converter provides a simple, cost-effective solution to connect a variable reluctance (VR) sensor to a hall effect sensor input on your MaxxECU. Simply connect +5V power, ground, and one (or two) VR sensors to the circuit board, and it will output a 5V DC square wave with a frequency that matches the AC signal created by the VR sensor.
Triggers at 0.4V, max 200V.
