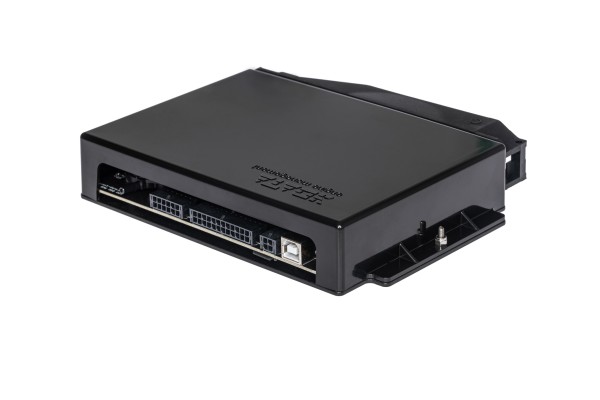

UAB BMW M44

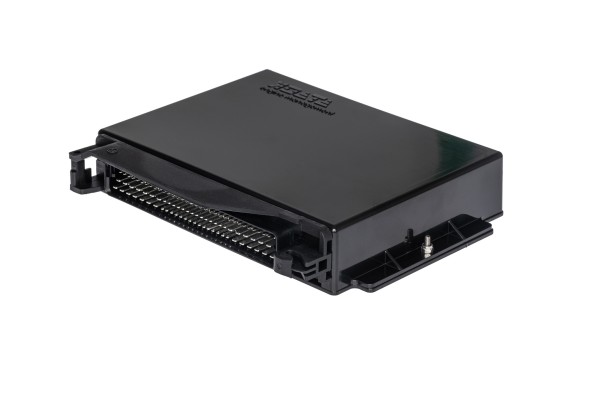

Universal adapter board for the BMW M44 engine with an 88-pin connector suitable for the engine wiring harness.

The board contains a powerful Motorola 9S12XEP100, which is also used in the Megasquirt 3.
A TunerStudio basic setup for the M44 engine can be found under Downloads.

Features:

• Cable harness and sensors can be used without modifications

• Full sequential ignition and injection

• Adjustable knock control with TPIC8101

• Integrated 3 bar boost sensor

• Integrated SD card logger with real-time clock

• Input for K-type exhaust gas temperature sensor

• Boost control

• CAN bus support (e.g. for dashboards, displays, or accessories)

• Several inputs for mode/table switching, launch control, etc.

• Several free digital and PWM outputs

• Updatable co-processor (ESP32) for lambda, Bluetooth, and CAN

• Bluetooth with adjustable PIN code

• Wideband lambda controller

This product is only street legal with special permission in most countries. Please check local laws before using it on public roads.
Automatic transmissions are currently not supported.

Scope of delivery:

• UAB BMW M44 (tested on an engine)

• SD card

• USB cable

• UAB manual

• Download
