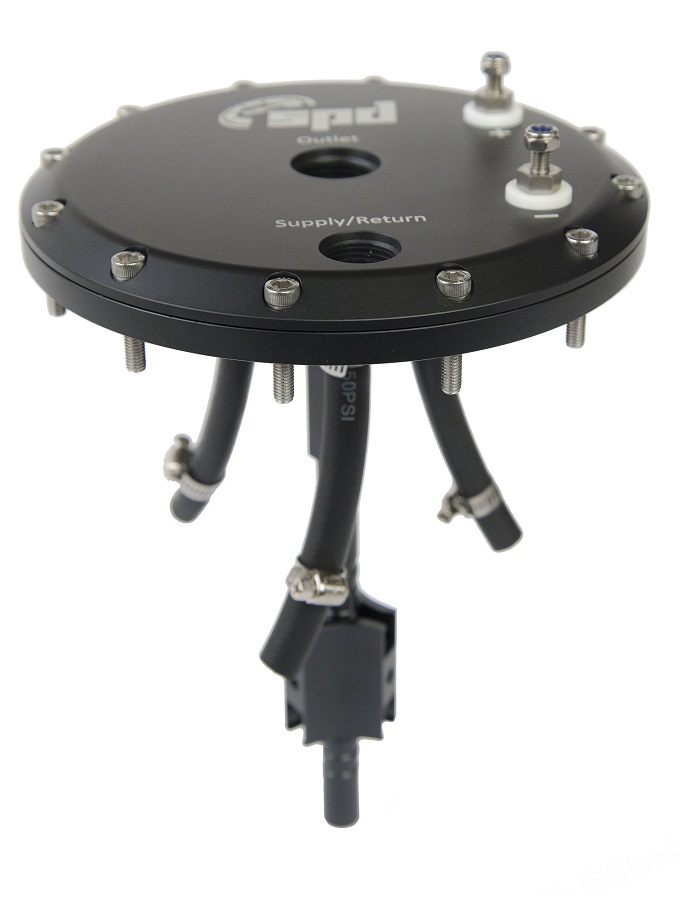

SPD Fuel pump hanger 200mm

Fuel pump hanger for those who want to build their own fuel tank / fuel cell or catchtank with internal pumps. Also suitable to fit in original fuel tank.

Supports all round fuel pumps on the market. Up to 3 pumps can be used. Adjustable height when installing the pumps to match specific conditions and tank height.

The fuel pump hanger is made to collect fuel from pumps installed into a chamber to obtain only one output. This saves a lot of space and money as there is no need to use extra Y-crosses, Tees, hoses, and AN fittings to merge several outputs into one.

You only use one hose to the engine and one hose back from the engine, regardless of whether you use 1, 2, or 3 fuel pumps. If you use dual fuel rails (V engines), you just add one Y-cross in the engine bay instead of several, which would have been needed without this fuel pump hanger.

Fuel pumps, hose clamps, and hoses are not included.

Specifications:

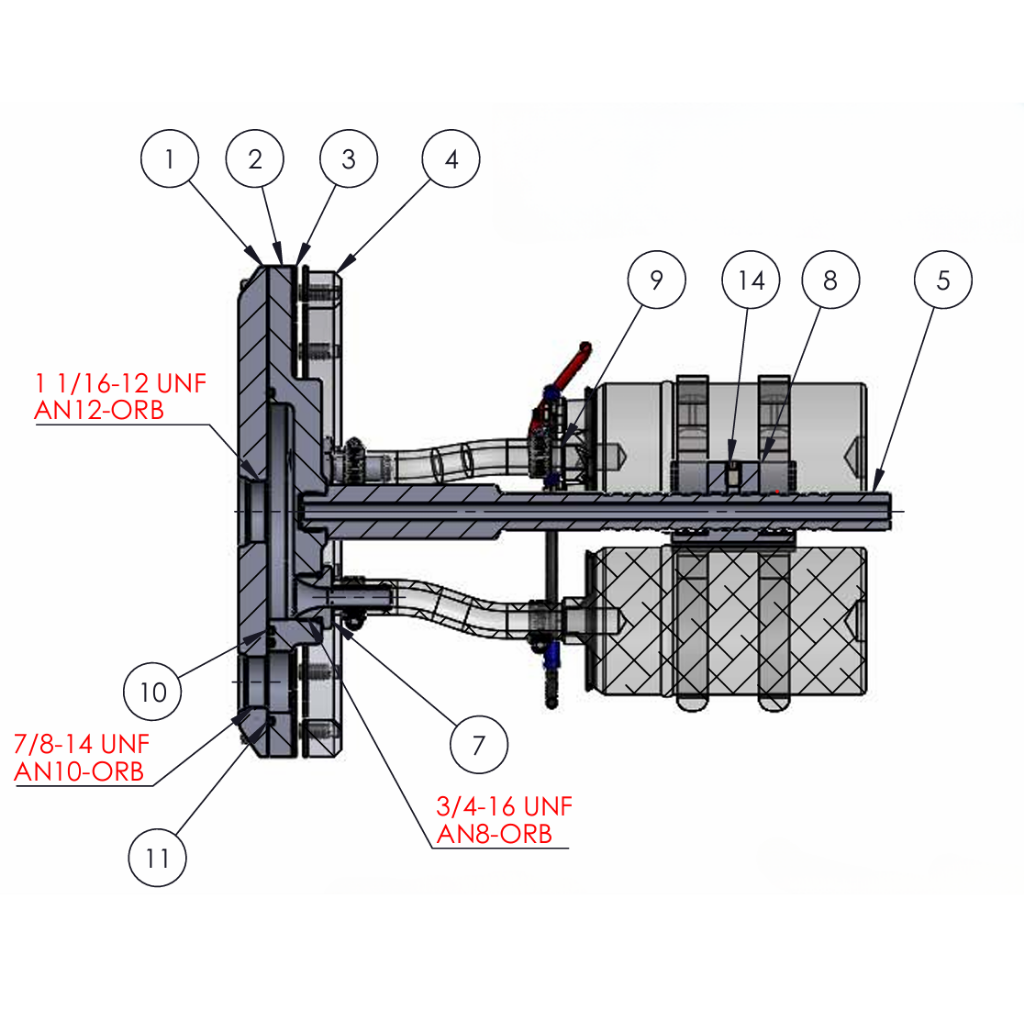

Output female: 1x AN12 (Adapters available to reduce output)
Return / Input female: 1x AN10 (Adapters available to reduce output)
Input / Output female connections support both O-ring and washer seal

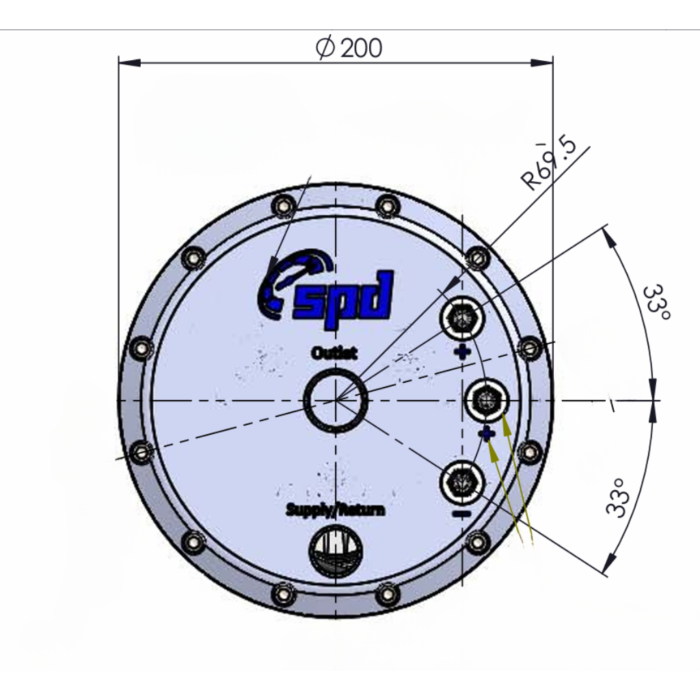

Diameter: 200 mm
CC between bolt holes: 185 mm
CC between input / output holes: 70 mm
CC between +/- terminals: 75 mm

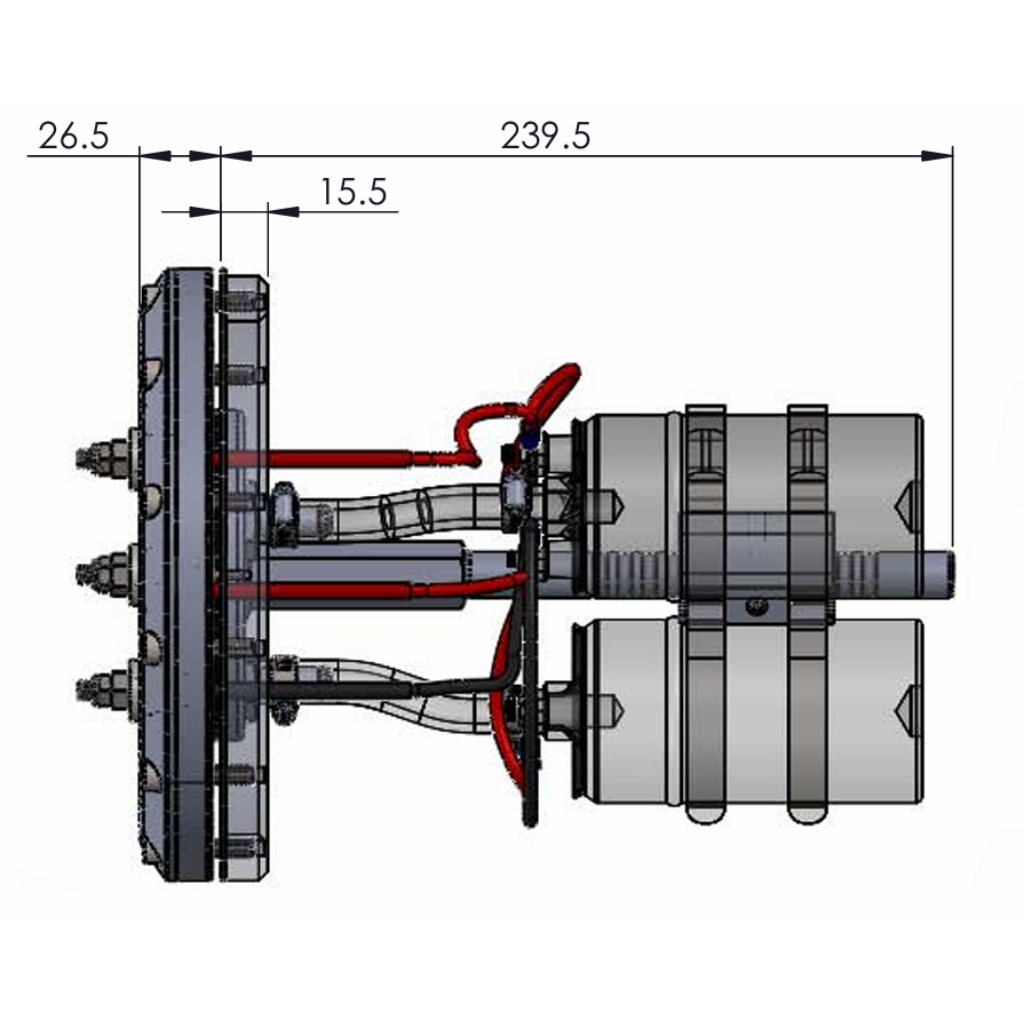

Length of pump mount: 230 mm
Adjustment limit on pump mount: 90 mm
Diameter of pump mount (tube): 15 mm

NOTE! We strongly recommend that you buy with the associated mounting flange. It is placed inside the tank to be able to easily pull attached fittings, creating a tight mounting between the clamping ring flange, tank, and fuel pump hanger. Available for purchase as a linked accessory.
