SPD catch tank for in-tank fuel pumps

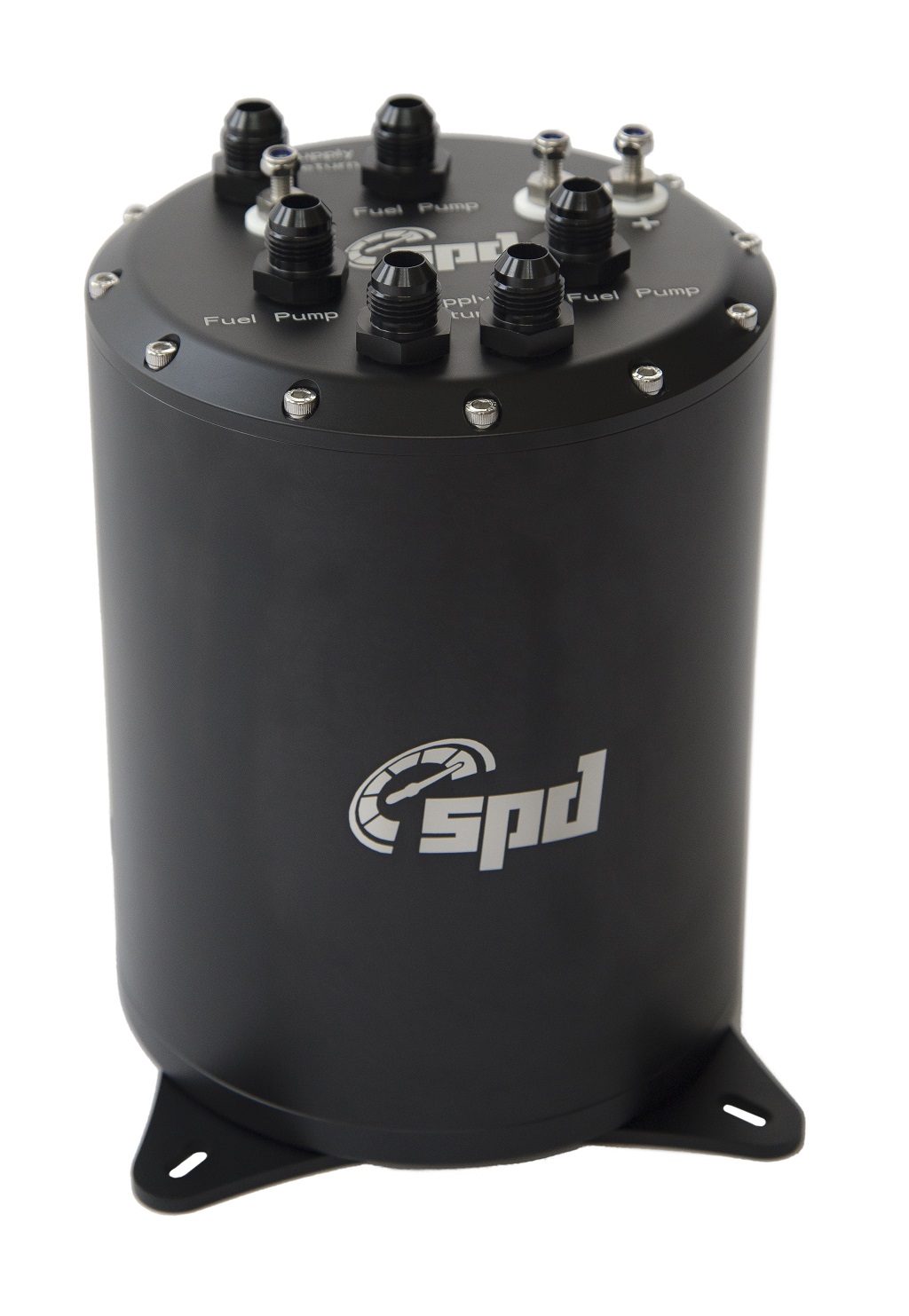

SPD high-end catch tank that has milled parts out of one piece. The entire construction is bolted with Viton O-rings for maximum operational reliability for both gasoline and ethanol. The tank has no welds that can crack and start leaking.

It is the same catch tank for both internal and external pumps. There are extra accessories in the internal catch tank that enable the installation of internal pumps.

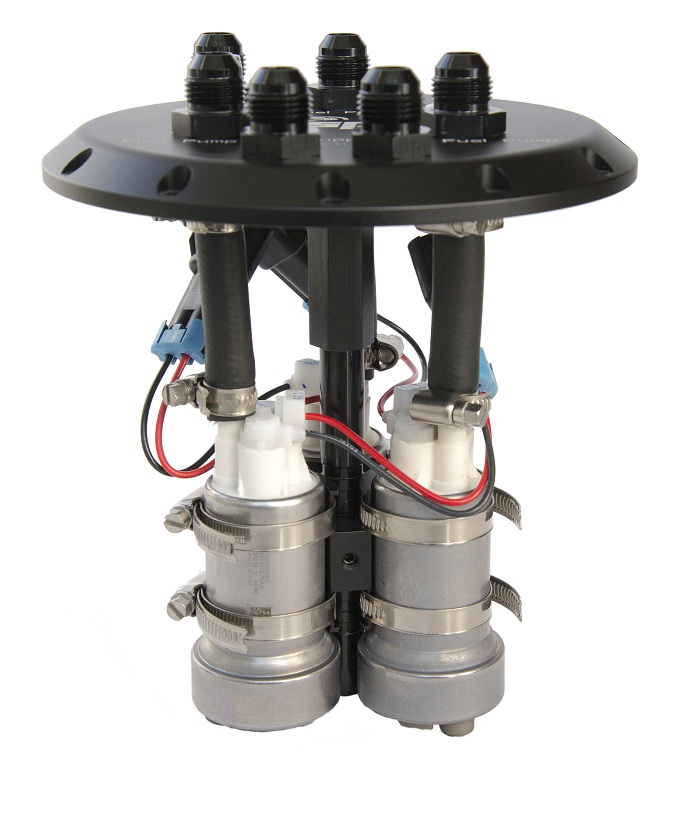

The construction of the bracket for the pumps allows easy mounting of all internal pumps which are round and have a diameter of 40–60 mm, which is the market standard.

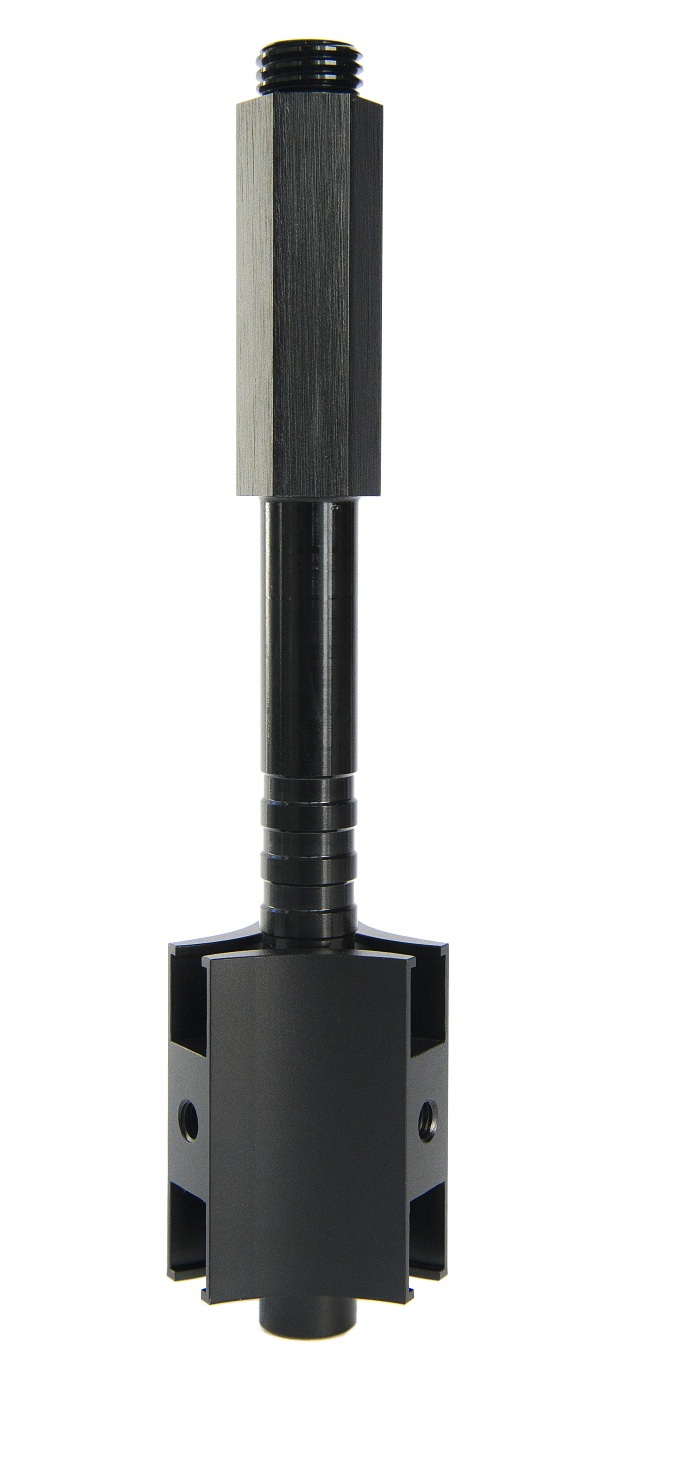

The pump mount is very stable and adjustable in height so you can easily achieve a good installation and push the pumps down to the bottom of the catch tank regardless of whether you use Walbro, AEM, Bosch, Deatschwerks pumps, etc.

This catch tank supports up to 3 pumps up to 60 mm! A catch tank that is equally suitable for those with lower power as well as those with very high power outputs.

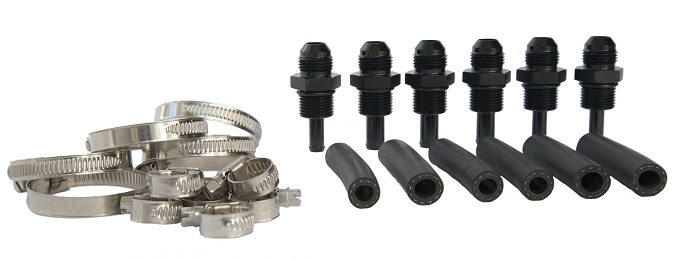

Accessories for connecting pumps with both 8 mm and 10 mm hose are included, as well as stainless hose clamps and ethanol/gasoline resistant hose made for submersible mounting.

AN8 connections are standard on the catch tank.

Specifications:

– Updated with 3 terminal blocks, marked with + (2 pcs) and – (1 pc)
– 6 AN8 female connections at the top
– Supports 1–3 pumps up to 60 mm
– Can be converted from internal to external pump assembly
– Milled and bolted construction that will not start to leak
– Volume of approximately 3 liters depending on how many pumps are used and their size
– Dimensions 190×235 mm (diameter x height without nipples) 190×260 mm (diameter x height with nipples)

* Pumps not included.
