Audi 1.8T AEB engine wiring

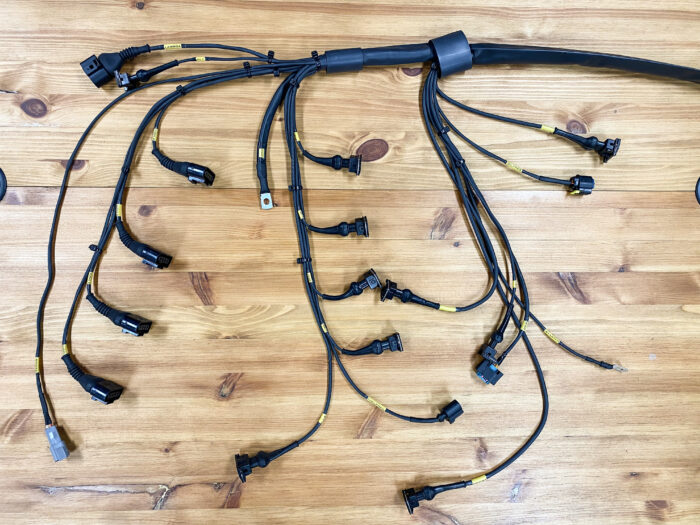

The wiring is made for programmable controllers, which makes installation easy and fast.

Wiring information

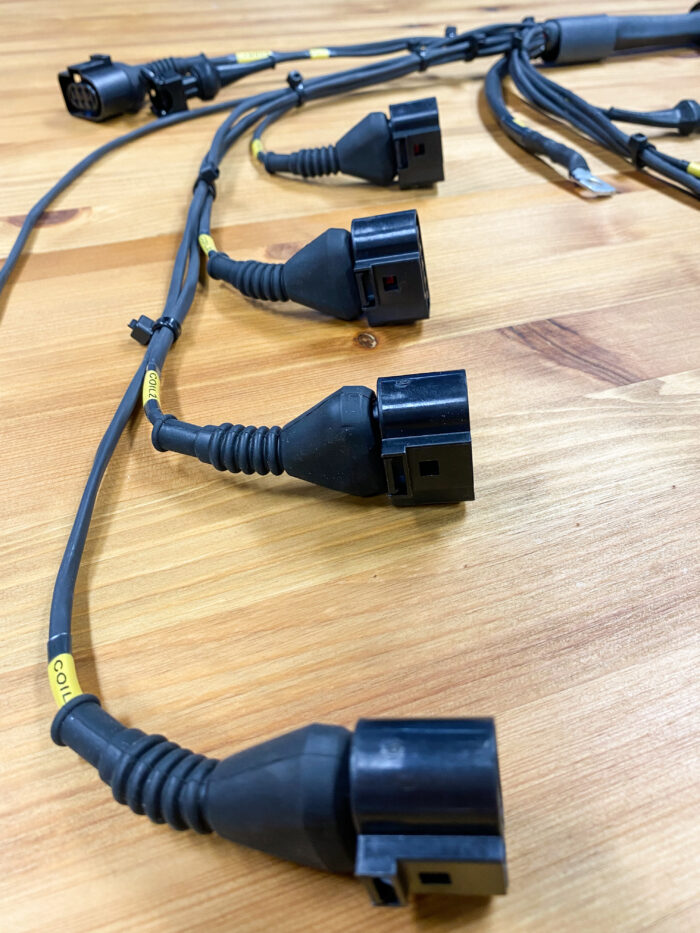

4x Vag Red Ignition Coils (Ignition Coil)

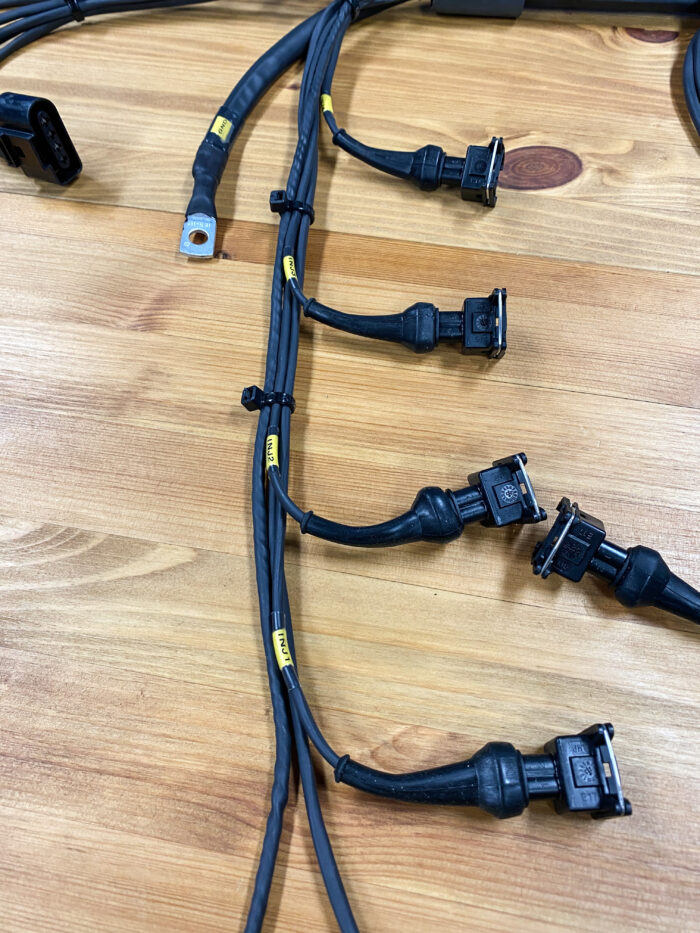

4x injectors

1x Knock sensor

IAT (IAT sensor)

CLT (CLT sensor)

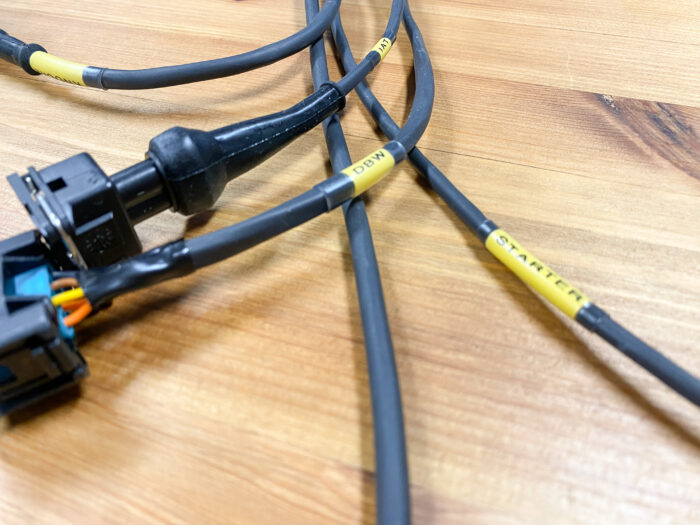

DBW

Boost solenoid

Lambda LSU 4.2 (it is also possible to order 4.9) (Lambda LSU 4.2)

Oil pressure/temperature sensor option ( Sensor)

Fuel pressure/temperature sensor option (Sensor)

Camshaft position sensor

Crankshaft sensor

If you wish to order with the installation of the control unit, please contact info@tuunerstuudio.ee.
