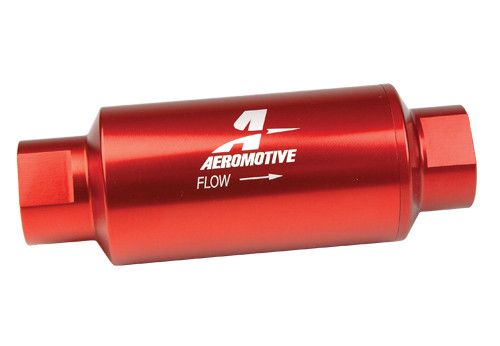

Aeromotive fuel filter 12304 (ORB10)

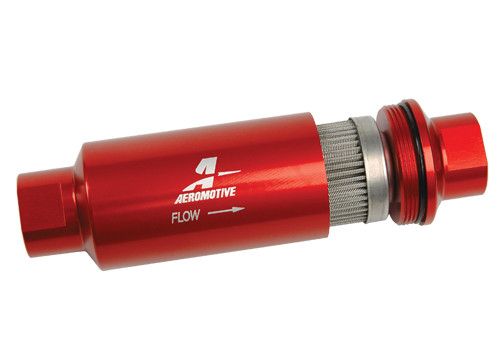

High-flow 100-micron cleanable stainless steel (coarse) element

Flow rate: 2,000 lb/hr with less than 1 PSI pressure drop

Compact size: 5.5″ long × 2″ diameter

Ports: ORB-10 ports. Fittings available to adapt to AN-10, -08, and -06 line sizes (see Fittings & Adapters)

Legal note: Not legal for sale or use on emission-controlled vehicles except as a direct OEM replacement

Sealing: All filters feature an O-ring for positive sealing in high-pressure applications

Material: CNC-machined from 6061-T6 aircraft aluminum

Finish: Bright dip red anodized for corrosion resistance and show-quality appearance

Application: 100-micron filters are designed for use between the fuel tank and fuel pump to protect the pump
